The Berker S.1 has set standards with its characteristic curved surround, its unmistakable, timeless form, the quality of its workmanship – not to mention its functionality. This has quickly made it into an extremely popular standard for offices and homes.
Dimensions
Frame 1gang
Frame, 1gang
W 80,5 mm x H 80,5 mm, 1gang
W 80,5 mm x H 80,5 mm, 1gang

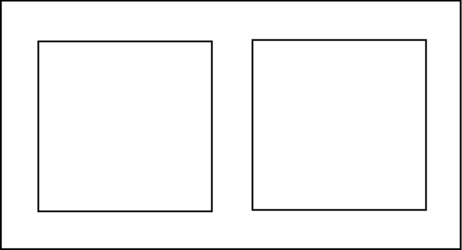

Frame, 2gang, horizontal
Frame, 2gang, horizontal
W 151,5 mm x H 80,5 mm, 2gang
W 151,5 mm x H 80,5 mm, 2gang

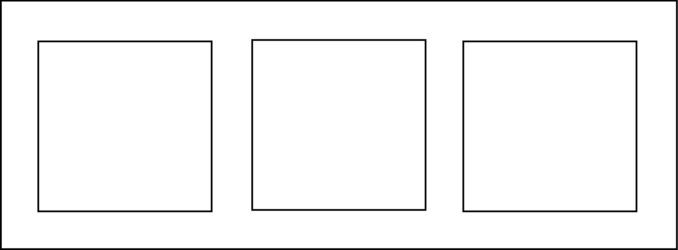

Frame 3gang, horizontal
Frame 3gang, horizontal
W 223 mm x H 80,5 mm, 3gang
W 223 mm x H 80,5 mm, 3gang

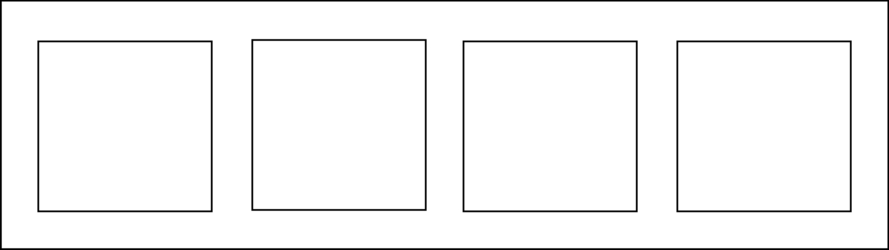

Frame 4gang, horizontal
Frame 4gang, horizontal
W 294 mm x H 80,5 mm, 4gang
W 294 mm x H 80,5 mm, 4gang

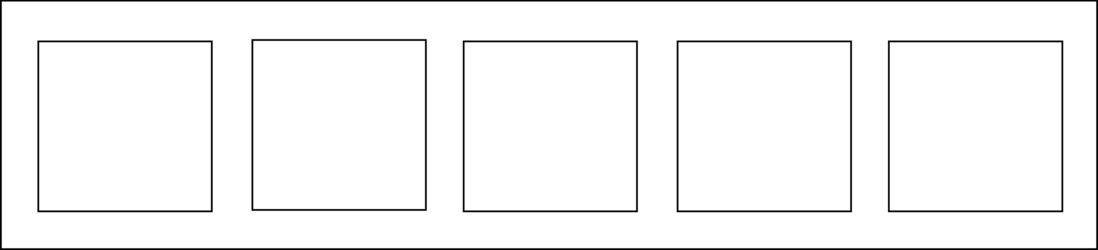

Frame 5gang, horizontal
Frame 5gang, horizontal
W 365 mm x H 80,5 mm, 5gang
W 365 mm x H 80,5 mm, 5gang
Frame 2-5gang, vertical
Frame 2-5gang, vertical
H 151,5 mm x W 80,5 mm, 2gang
H 223 mm x W 80,5 mm, 3gang
H 294 mm x W 80,5 mm, 4gang
H 365 mm x W 80,5 mm, 5gang
H 151,5 mm x W 80,5 mm, 2gang
H 223 mm x W 80,5 mm, 3gang
H 294 mm x W 80,5 mm, 4gang
H 365 mm x W 80,5 mm, 5gang

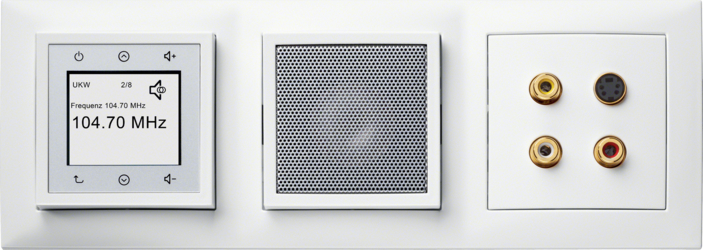

Product examples
Surface
Plastic, polar white matt
Plastic, white glossy
Plastic, polar white glossy
All data is subject to errors and technical modifications.
